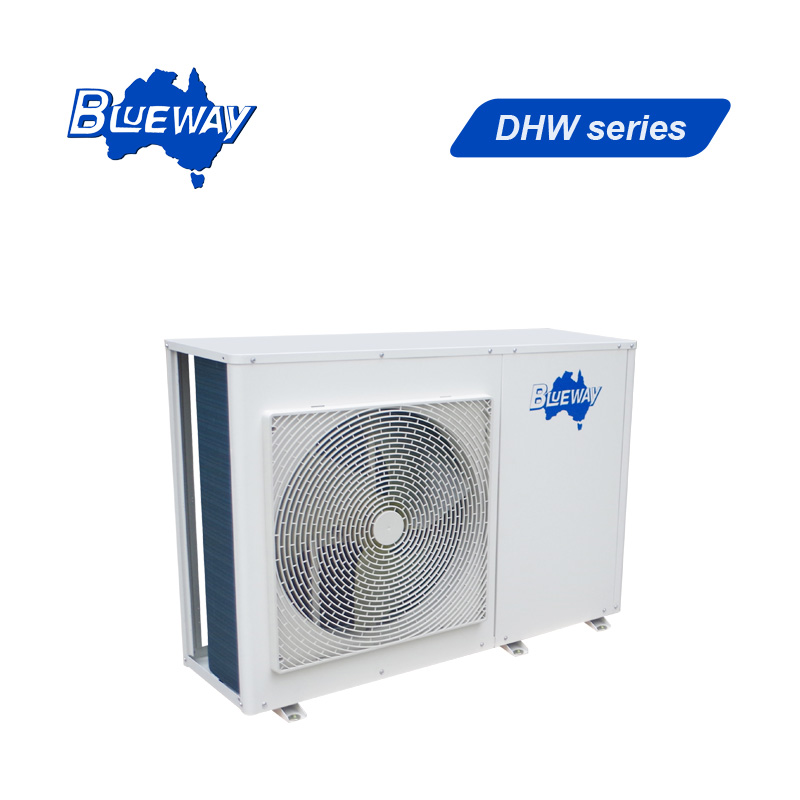

Circulating type of Domestic Heat Pump Water Heater adopts high efficiency tube-in-shell water heat exchanger and incorporates a built-in water pump for easy installation work. The unit is capable of producing high hot water with a maximum temperature up to 60℃. Instant Hot Water Heat Pump can be retrofitted to existing geyser to replace electric water heater, saving more than 2/3 energy.
Instant type of Domestic Heat Pump Water Heater adopts advanced variable flow rate control technology, keeping a constant water temperature in the cold climate and hot climate. Unlike Circulating Models, the outlet water temperature from Instant Models directly reaches the setting temperature. The fast defrosting technology enables the system work well in the low temperature, moist ambient conditions.

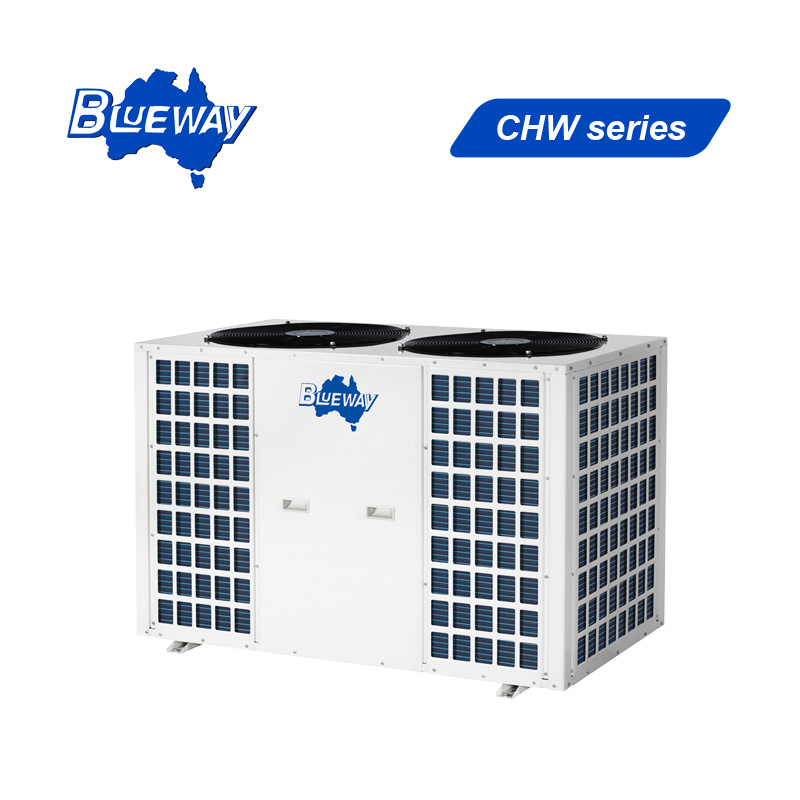

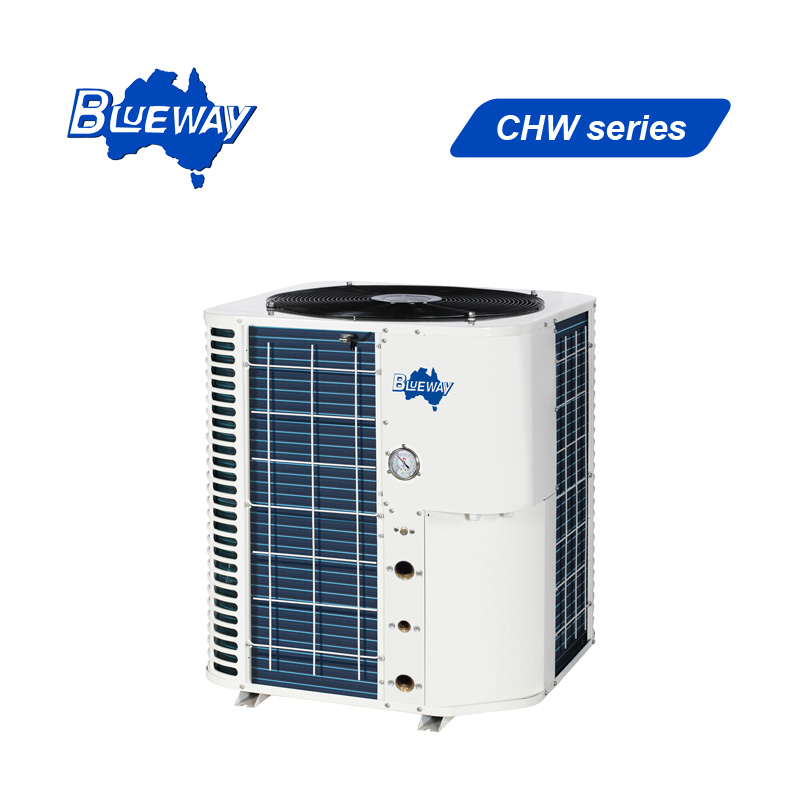

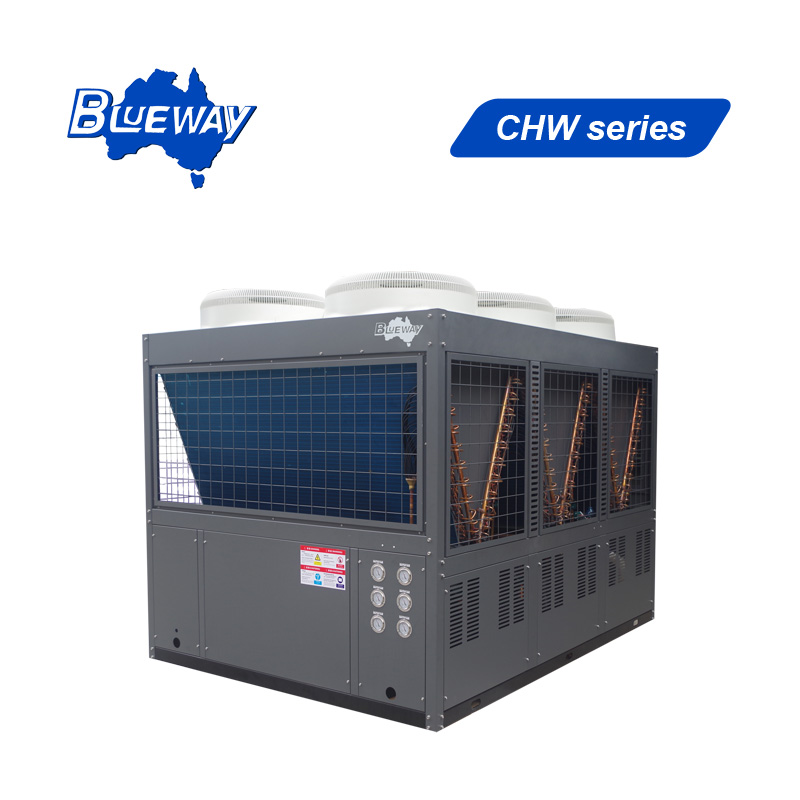

Instant Hot Water Heat Pump is designed to offer hot water for commercial and (or) industrial application. In order to achieve the required water temperature, large heat pump units apply unique V style evaporator design, which enlarges the heat exchange surface and increases efficiency.
♦ High working pressure
The copper pipe is of 0.8~1.2 mm thickness.no welding inside. With its extraordinary pressure resistance property, the copper pipe is without any leakage under 5Mpa pressure test.
♦ The internal spiral surface of the copper tube ensures effectiveness of heat exchange and prevents from lubricant accumulation.
| Working Conditions | ||
| Refrigerant Side | Water Side | |
| Max. Working Pressure | 5.2Mpa | 3.2Mpa |
| Working Temp. Range | -50~150 ℃ | -50~150 ℃ (above freezing point) |
♦ Grooved external surface of the copper tube increases also the heat transfer area which is 3.7 times of the smooth surface.
♦ Spiral tube used to increase heat transfer area for high efficiency
♦ Specially designed to provide excellent efficiency, reliability, and reduce fouling.
♦ Famous brand rotary compressor for Domestic Heat Pumps
♦ Copeland, Danfoss or Panasonic scroll compressor for Commercial Heat Pumps
● World famous scroll compressor for reliability and superior performance
● Intelligent control: micro processor based digital controller with LCD display
● Adjustable water temperature setting: 25℃-60℃
● Water heat exchanger: tube-in- shell for circulating type, tube-in-tube for instant type
● Heavy gauge galvanized steel cabinet with epoxy powder coating for long lasting outdoor life span
● Built-in circulating water pump is optional.
1.Blueway has around 30 years of rich HVAC manufacturing experience.
2.Over 1000 original R&D products, Blueway is qualified to be OEM/OBM/ODM.
3.Over 10000 engineering solutions with great success provided by Blueway.
4.Online technical service is available twenty-four hours a day without break.
5.Blueway intelligent control system with precise timing, temperature control & remote monitoring function.
A: Generally, residential type adopts built-in water pump as standard. German Wilo or Chinese Shinhoo brand are optional.
A: We have various kinds of appearance for the hot water heat pump, usually we adopt white for short production time.
A: R22/R407c/R417a.
A: 60℃for normal type, 80℃ for high temperature type. Please also refer to the “High Temperature Heat Pump” series.
A: 1 year for the whole unit, 3 years for the compressor.
A: Shunde, China or Nansha.China.
A: 100% advance payment for small sample order. If container order, 30% advance payment to confirm the order, balance payment should be paid 7 days before shipment.
